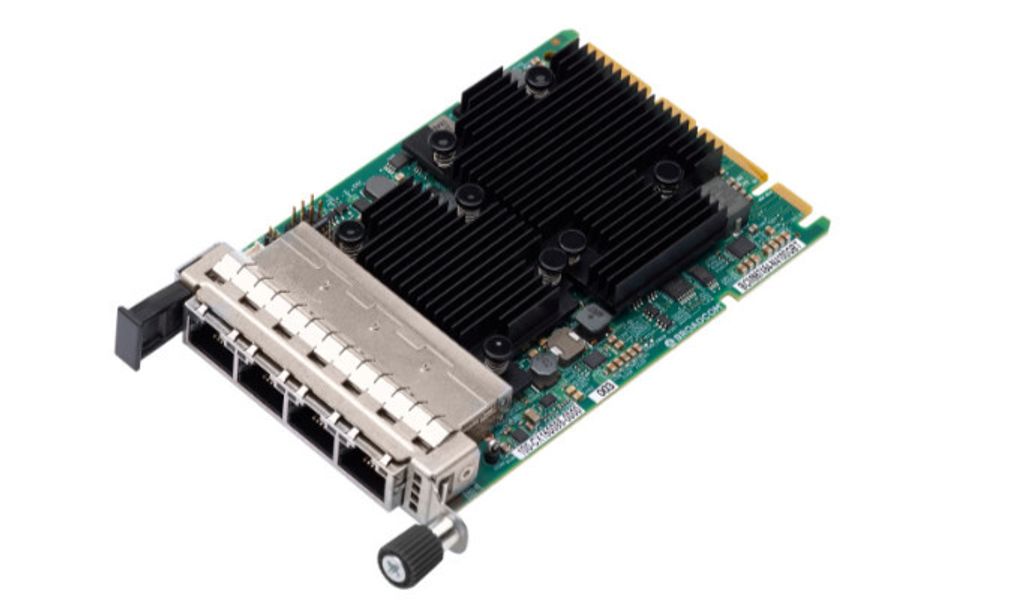

Lenovo TS BROADCOM 57454 10GB 4P OCP ETHERNET ADAPTER IN (4XC7A08240)

Gerätetyp

Netzwerkadapter

Schnittstellentyp (Bustyp)

Open Compute Project mezzanine (OCP) 3.0

Ports

10Gb Ethernet x 4

Anschlusstechnik

Kabelgebunden

Verdrahtungstyp

Ethernet 1000Base-T, Ethernet 10GBase-T

Data Link Protocol

Gigabit Ethernet, 10 Gigabit Ethernet

Datenübertragungsrate

10 Gbps

Kapazität

Jumbo-Frame-Größe: 9600

Netzwerk/Transportprotokoll

TCP/IP

Leistungsmerkmale

Wake on LAN (WOL), PXE-Unterstützung, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Edge Virtual Bridging (EVB), Accelerated Receive Flow Steering (RFS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Function Level Reset (FLR), Software Defined Networking (SDN), VLAN Tagging, Network Function Virtualization (NFV), TruFlow, Enhanced Transmission Selection (ETS), SMBus 2.0, Flussbeschleunigung

Produkten

IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008

Prozessor

1 x Broadcom BCM57454

Schnittstellen

4 x 10GBase-T - RJ-45

Zubehör im Lieferumfang

Low profile Slotblech

Kennzeichnung

BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B

Tiefe

11.5 cm

Höhe

7.6 cm

Service und Support

Min Betriebstemperatur

0 °C

Max. Betriebstemperatur

55 °C

Zulässige Luftfeuchtigkeit im Betrieb

5 - 95 % (nicht kondensierend)

Entwickelt für

Lenovo ThinkAgile HX5530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32
